Introduction

Each of the Learning Flights is structured with a set of high-level objectives that introduce the concepts needed to successfully complete the flight. Throughout each flight, you'll find the following resources:

These Learning Flights are designed to be living resources that are updated frequently in response to airspace and procedural changes, approach availability, and feedback. As you complete the flights, please don't be shy! If you find typos, unclear or inaccurate information, broken links, out-of-date procedures, or you just want to share some ideas (like a great video you found online to explain a certain concept), please contact us. We're also interested in great freeware or payware scenery recommendations you may have.

We hope you enjoy the program, the learning, and the tour of an incredibly scenic area!

Objective 1

Load Your Aircraft and Set the Weather

To begin, select an aircraft you are familiar with. Because we're planning for some VFR flying in one of the most scenic areas in the United States, you might opt for a General Aviation aircraft allowing you to fly slower and see the sights. However, make sure you pick something that's got decent power to it: we're going to be operating at airports above 6,000 ft. MSL and you'll be flying in a region with terrain peaks above 11,000 ft.!

When you're setting up the aircraft, be sure to set your callsign so that automated (or human-provided) ATC identifies you correctly. The way you choose your callsign is determined by the type of flight you plan to perform. Airliners, cargo flights, and private jet operators tend to use their flight numbers while private and general aviation flights use the registration of the aircraft.

Airline callsigns generally follow the same format around the world. However, aircraft registrations change by country. For example, in the United States, aircraft registrations begin with the letter "N" and are followed by:

Note that the letters "I" (India) and "O" (Oscar) are not used in these tail numbers to avoid confusion with the numbers 1 (one) and 0 (zero), and the numeric portion of these callsigns cannot begin with zero (for example, N032BC is incorrect).

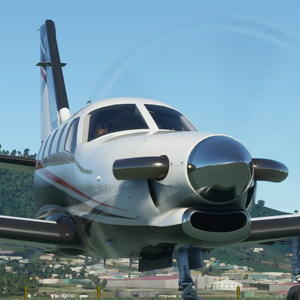

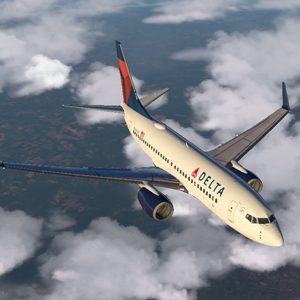

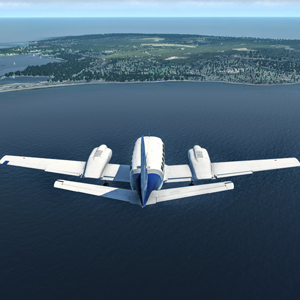

Some examples of appropriate callsigns, by the type of operation, are provided below. Mouse over each image to see more.

Given this is a VFR flight, you'll want to pick a good-weather day or configure your simulator to good weather for VFR flying. Additionally, you'll want to do the flight with daylight since you'll be looking outside to help with navigation.

VFR stands for Visual Flight Rules, meaning that pilots must navigate visually when operating under those conditions. Visual navigation requires certain atmospheric visibility and the ability to maintain clearance from clouds. While the specific VFR minima vary by country and airspace type, the atmospheric visibility must generally be greater than 3 NM and pilots must be able to remain 500 feet below, 1,000 feet above, and 2,000 feet laterally from clouds.

A full list of United States VFR weather minima is listed in FAA publications. Note that within certain types of airspace, special VFR clearance may be obtained, which allows pilots to operate VFR even when the weather is below VFR minima.

Finally, choose a good starting point for your flight. At airports with commercial airline service, the terminal building is often a highly secured place. You dump out liquids and take off your shoes each time you enter the "secured" area of the airport to fly commercially. A pilot being able to taxi their Cessna 172 into this highly secured area would somewhat defeat the purpose of the TSA! Instead, General Aviation aircraft—including corporate jets or even airliners if they're flying sports teams or firefighters—park at other places on the airport.

General Aviation aircraft based on the airport typically have hangars or tie-down locations for parking. Transient aircraft that might be stopping for lunch or overnight will usually park at a Fixed-Base Operator, or FBO. Think of an FBO like a "terminal" for private and charter flights. In most flight simulators, you can select a parking location like "GA PARKING" to avoid spawning at the terminal. If you do spawn at the terminal, re-locate your aircraft to a more appropriate location before you get started. We'll talk more about using Airport Diagrams and other charts to locate proper parking spots later in this flight.

Objective 2

Flight Planning

Before beginning any flight, it is important to conduct a thorough flight planning process, which includes gathering the appropriate charts, reviewing airport information, and checking the weather. We won't talk too much more about weather in this flight, since you'll be conducting it in VFR conditions.

After flying two laps in the pattern at KBZN, the plan is to fly to KWYS and then on to KJAC.

We'll begin the flight planning process by looking at some considerations specific to the airports. When you look at an airport you plan to fly into or out of, you'll want to:

Find the Charts

In the United States, the Federal Aviation Administration (FAA) publishes aeronautical charts for free. Our Learning Flights will reference FAA charts. However, you are also welcome to use payware charts such as those provided by Jeppesen, which are accessible from Navigraph or real-world sources like ForeFlight.

FAA charts are available from a variety of resources. This Learning Flight series will make use of one of the most popular sources, called AirNav.

To access charts for this flight:

Start by gathering airport information for KBZN. Using the instructions above, you should reach the following URL: https://www.airnav.com/airport/KBZN. In addition to listing airport charts (near the bottom of the page), AirNav also provides a great overview of the airport, including airport elevation, runway details, airport notes, and more.

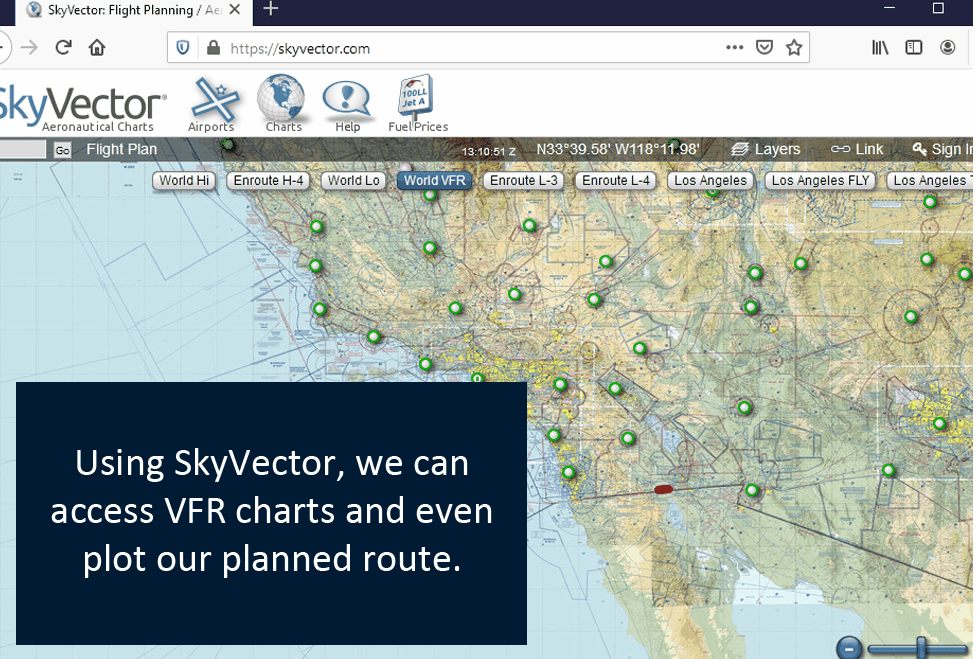

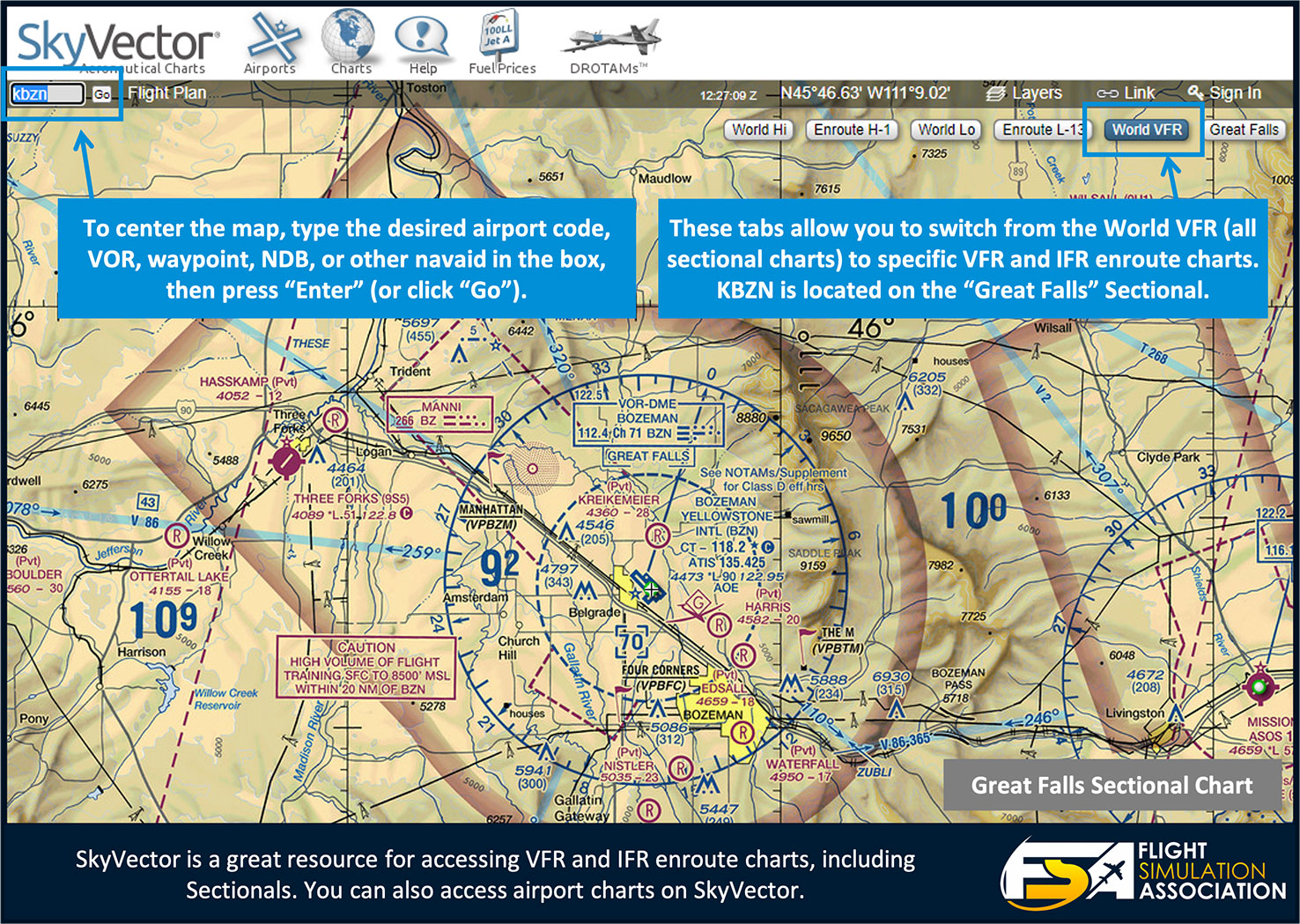

Another resource we'll rely on in this series is SkyVector. This free website allows you to access FAA VFR and IFR enroute charts with ease. Visit the website and type "KBZN" into the text box at the top left of the page. Then, click the "World VFR" tab in the top right, and you'll be looking at the VFR chart for the Bozeman area (referred to as a "sectional chart" in the United States).

Review Notes

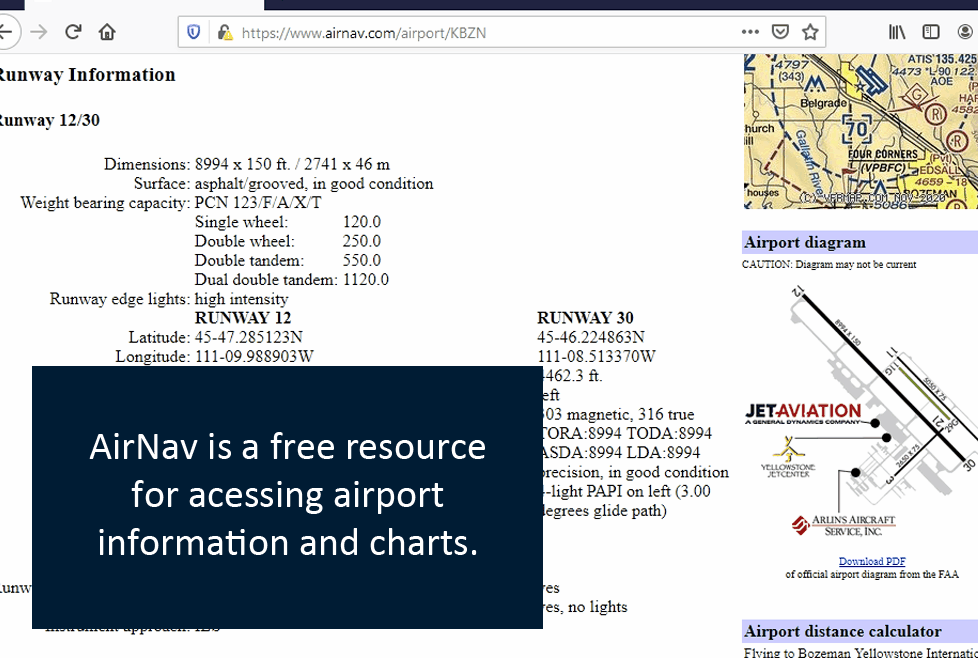

Spend some time reviewing the information provided on AirNav's website, which includes details regarding airport operations, runway information, and special remarks. The airport diagram is linked halfway down the page on the right side, and all instrument approach procedures are listed towards the bottom of the page.

There are two notes of particular interest. First, note the pattern altitude under the "Airport Operations" section.

Next, read the "Additional Remarks" section, which includes the following statement:

RWY 12 IS NORMALLY USED FOR ARRIVALS/DEPARTURES WHEN THE WIND SPEED IS LESS THAN 10 KNOTS. IF AIRCRAFT IS UNABLE TO USE RWY 12, OTHER RWYS MAY BE USED BUT DELAYS MAY OCCUR.

We'll use both pieces of information later in the flight.

Determine Where to Park

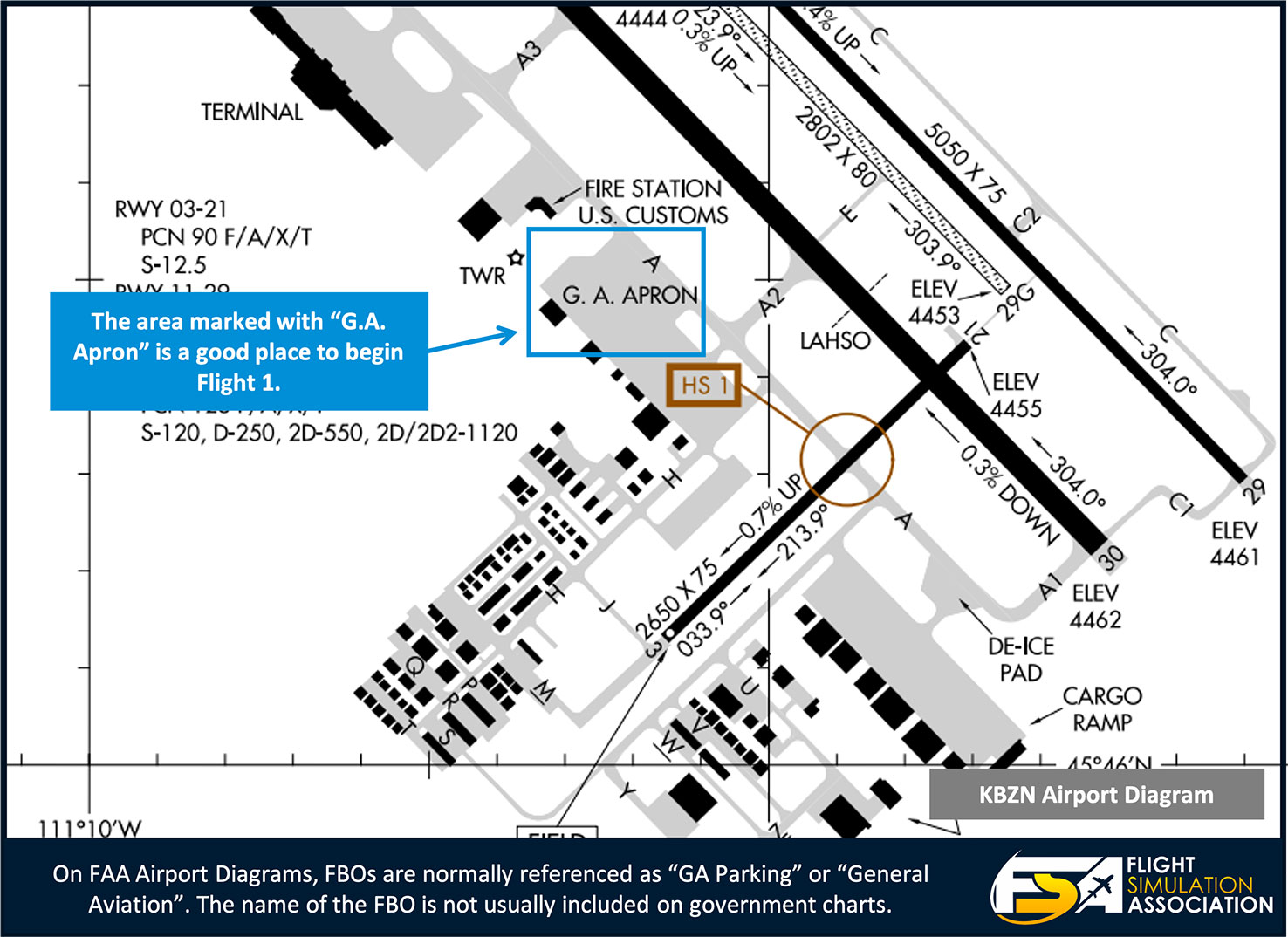

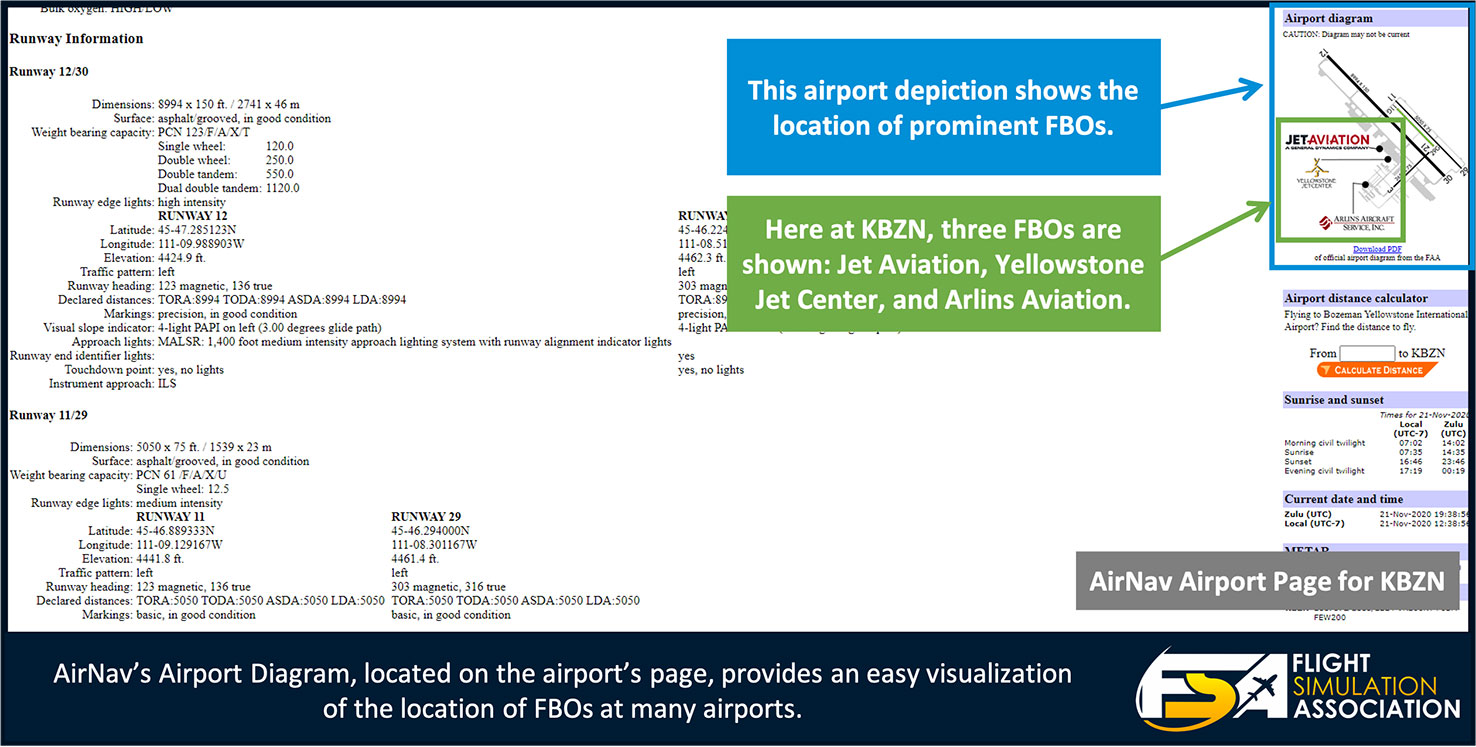

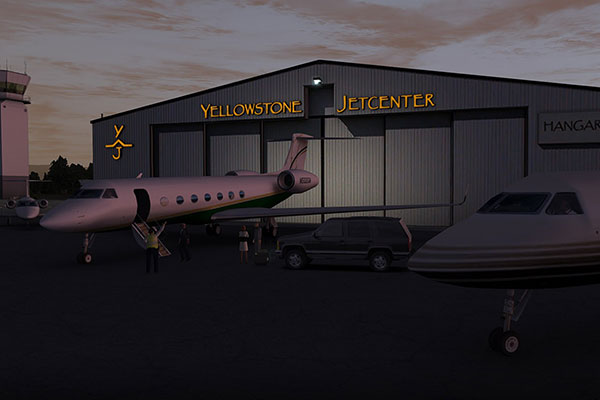

Finding an FBO isn't always as easy as it seems! The easiest way to locate an FBO on the airport is to use another resource on AirNav. About halfway down the page, on the right side, you'll see a small Airport Diagram that shows the location of the FBO. At KBZN, three FBOs are shown. In real life, you might call each to compare handling fees and services. For flight simulation purposes, it's just helpful to know that this area is considered the "general aviation parking" location.

Clicking the "Download PDF" link allows you to access the official FAA Airport Diagram for KBZN. Notice that the FBO location isn't mentioned. However, you can see that both the "Jet Aviation" and "Yellowstone Jet Center" FBOs are located in the area marked on the Airport Diagram as "G.A. APRON". That's a good place to start.

Take a moment to locate the AirNav page for KWYS and KJAC, review notes, and download the Airport Diagrams. Amongst other things, you'll notice an important safety note about runway incursions at KJAC and that KWYS is closed from October 31 through May 7. More on those notes later.

Plan Your Route

Now that you have an idea of the airports you'll be visiting, let's start planning the route of flight. After two laps in the pattern at KBZN, we'll use a technique called "pilotage" to get to KWYS. Pilotage involves using visual references on the ground to navigate from one place to another; in other words, we'll use a series of landmarks to get us to KWYS. Of course, if you have a GPS on board, that's a great situational awareness tool to have too.

After takeoff, we'll climb until we can see the town of Bozeman. From there, we'll turn south until we see US Route 191, shown as a gray line on the sectional. Follow that, and the Gallatin River, as it curves through the mountains. You'll see KWYS just after passing Hebgen Lake.

To help with navigation, we can plot this route on SkyVector. First, click the "Flight Plan" link at the top left, then enter the three airports we plan to fly to. You'll get magenta lines connecting the three airports, which you can click and drag to plot a route:

The end result should look something like this:

For now, leave the route segment between KWYS and KJAC as a straight line. We're going to use "dead reckoning" to navigate that segment and discuss that later in this flight.

The last decision to make before flying is choosing a cruising altitude. When flying VFR above 3,000 ft. AGL, your cruising altitude must be at altitudes on the thousands, plus 500 feet.

You might have noticed when plotting the "direct" routing between KBZN and KWYS that the track between the airports is 167°. Thus, we need an odd altitude, plus 500 feet. We could choose to either fly above the mountains at 13,500 ft. MSL or fly in the river valley at a much lower altitude. Pick an altitude that suites your preference.

Objective 3

Taxi to the Active Runway

Before we worry about navigating in the air, we need to make it to the runway! First, determine which runway you'll use for departure. In general, you want to select a runway that is facing into the wind and that is long enough for what you need. Runways are numbered based on their magnetic heading (i.e., Runway 12 is roughly on magnetic heading 120, Runway 3 is roughly magnetic heading 030). The wind is reported based on the direction it's comingfrom. Thus, pick the runway number closest to the wind.

For example, if the wind at KBZN is reported as 030 at 5 knots, then Runway 3 (heading 030) is going to be the most into-wind runway. That said, it's also important to consider obstacles, noise abatement rules, and the direction of flight. For example, the AirNav page for KBZN notes:

RWY 12 IS NORMALLY USED FOR ARRIVALS/DEPARTURES WHEN THE WIND SPEED IS LESS THAN 10 KNOTS.

So, although Runway 3 might be the most into-wind runway in the example given, Runway 12 would be preferred for noise abatement reasons.

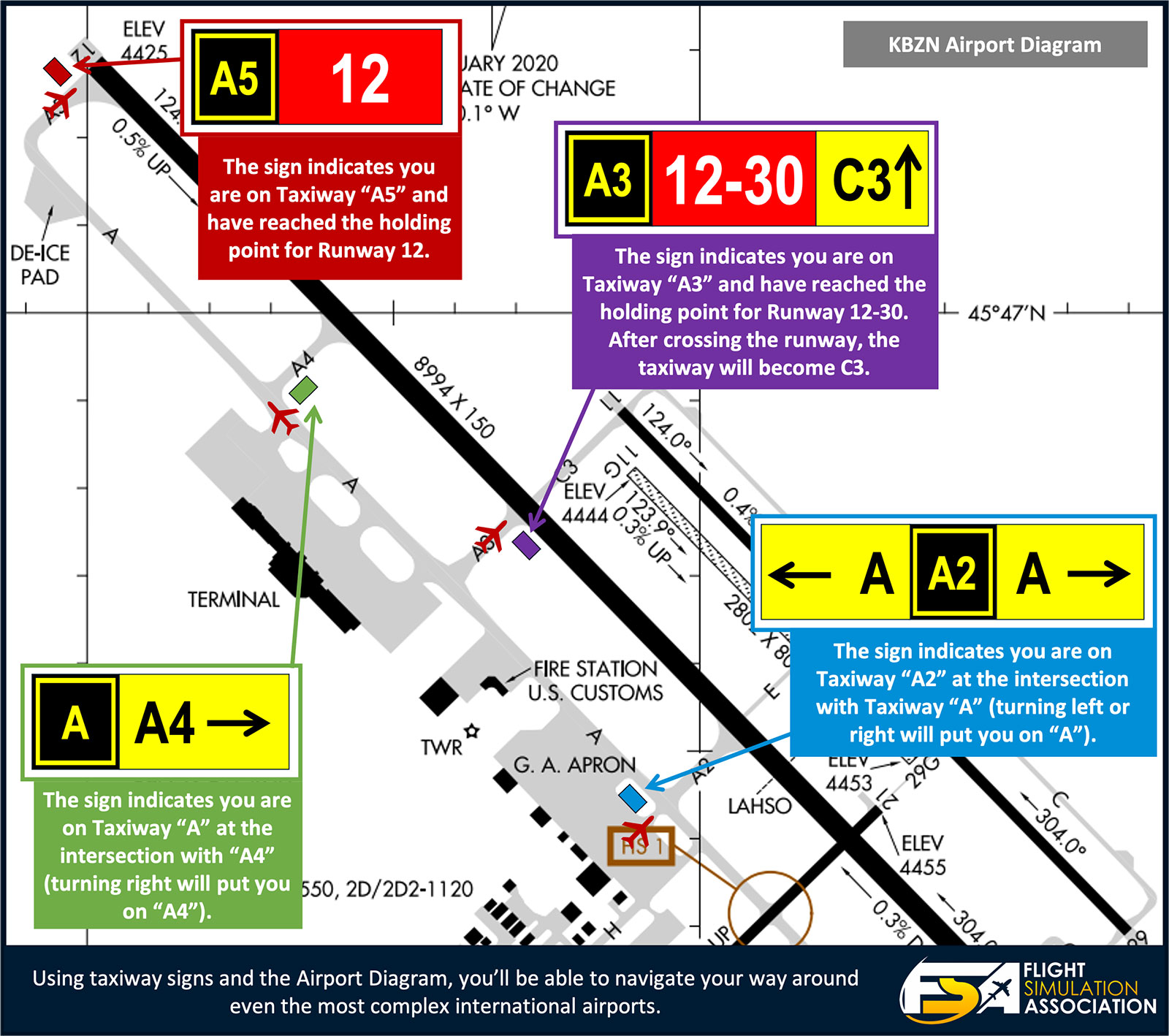

Once you know what runway you'll be using, getting there is as easy as cross-referencing the Airport Diagram with taxiway signage:

Add-ons like Navigraph exist that will connect your simulator to a tablet, allowing you to see your aircraft's position overlayed on a chart application running on your tablet. See our Connecting Your Tablet Guide for more information.

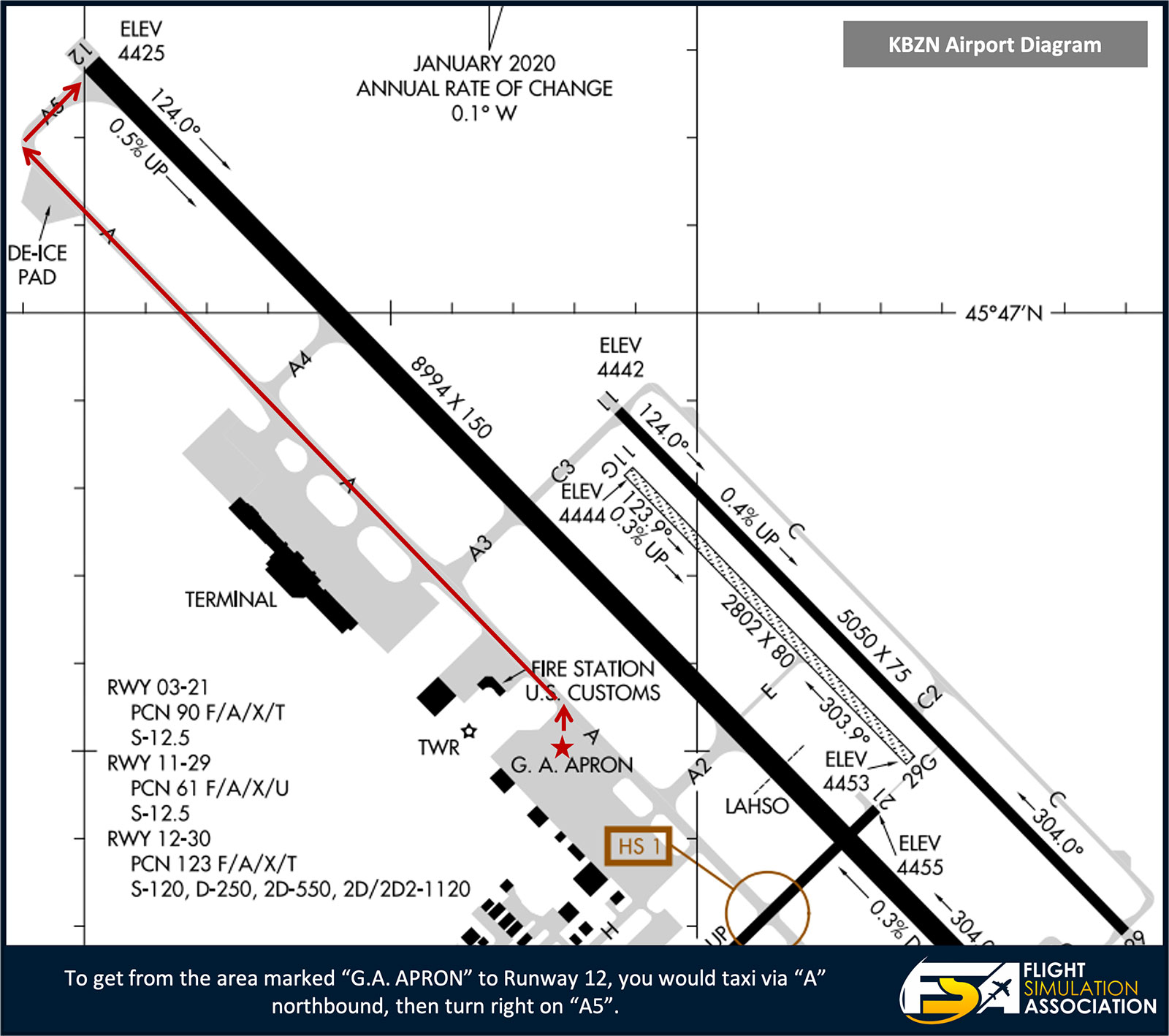

If you're parked at the "G.A. APRON" and are planning to use Runway 12 for departure, you'll need go taxi northbound on "A" and turn right onto "A5":

Objective 4

Complete 2 VFR Closed Traffic Patterns at Bozeman

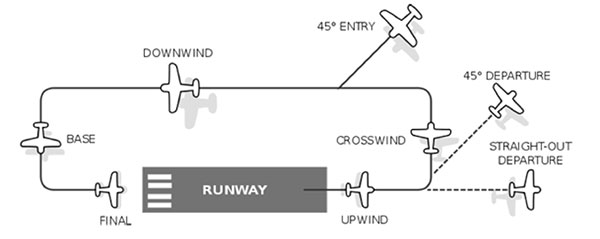

The traffic pattern is the standard method by which VFR aircraft depart and arrive at an airport. As shown in the diagram below, the pattern is rectangular in shape and is flown so that the airport is always within sight. Normally, this means you won't get further than about 2 miles from the airport at any time. The maximum altitude reached during the pattern, called the "pattern altitude", is 1,000 ft. AGL for light aircraft, unless otherwise published. Twin engine aircraft, turboprops, and small jets may fly the pattern at altitudes up to 1,500 ft. AGL.

The traffic pattern is normally flown using "left traffic", demonstrated in the diagram, meaning that all turns are made to the left. However, in some instances, "right traffic" may be assigned or prescribed due to specific runway configurations, terrain, or other factors. Unless air traffic control or an airport-specific procedure specifies otherwise, the traffic pattern should always be flown using left traffic.

You may have noticed during your review of the airport details that the Traffic Pattern Altitude (TPA) is non-standard at KBZN. Instead of the usual 1,000 ft. AGL, the published altitude is:

TPA: 829 FT AGL SNGL ENG, 1329 FT AGL MULT ENG/TURBOJET.

The airport elevation is 4,473 ft. MSL (also found on AirNav). Normally, for single-engine aircraft, the pattern would be flown at 1,000 ft. AGL, or around 5,500 ft. MSL (4,473 ft. + 1,000 ft.). However, based on the note, 829 ft. AGL should be used, so your pattern should be flown at about 5,300 ft. MSL (4,473 ft. + 829 ft.). For multi-engine or turbojet aircraft, the pattern should be flown at 5,800 ft. MSL.

Once you're ready to go, you'll takeoff and fly two laps of the pattern at KBZN. When airborne, climb straight out on the extended runway centerline to approximately 500 ft. AGL. Then, begin a 90 degree left turn onto the crosswind leg. Start the second 90 degree turn onto the downwind leg just prior to reaching pattern altitude.

On the downwind leg, you should be level at pattern altitude and flying parallel to the runway at a distance no greater than 3 NM from the airport. Once you're abeam the runway threshold, reduce power and begin descending, using flaps as appropriate. Make the third 90 degree turn to the base leg when the runway threshold is at a 45 degree angle behind you. On the base leg, continue reducing to your final approach speed. At the appropriate time, make the last 90 degree turn onto final and line up with the runway. For a small, general aviation aircraft, the final approach segment is normally no longer than 2 NM.

Conduct a full stop landing, touch-and-go, or stop-and-go, do one more lap in the pattern, and then—after your second landing—you'll start winging your way toward Yellowstone!

Objective 5

Depart Bozeman and Fly to Yellowstone

Since you've already done the flight planning legwork, navigating to Yellowstone should be as simple as following the route you plotted on SkyVector. The most challenging part is getting oriented immediately following the departure. You can never really know which runway will be active and what other traffic or ATC instructions may do to your planned initial climb. That's why the first point to find is the town of Bozeman, which should be easily visible to the south of the airport. Use your heading indicator and your situational awareness from the departure to find it. Then, navigate south until you see US-191 and follow it to the southwest while climbing to your planned cruising altitude.

Depending how high you decide to cruise, you'll want to start descending a little south of the Montana-Wyoming border. You should aim to be at, or close to, the TPA for KWYS when you reach the northern shore of Hebgen Lake.

Objective 6

Arrive and Depart Yellowstone

Unlike Bozeman, Yellowstone is an untowered airport. That means that, whether or not you are flying with ATC, you are "on your own" to enter the pattern. Like with KBZN, have a look through the airport notes, either on AirNav, in the Chart Supplement, or anywhere else you access airport information. You'll notice the airport is actually closed October 31 through May 7 because there is no snow removal. Fortunately, this doesn't affect us in the flight simulation world. (If you want to add the extra bit of realism, if you're flying between October 31 to May 7, fly a low approach but don't actually land at KWYS.)

Although KWYS doesn't have a tower, there are still procedures pilots follow to ensure orderly traffic flow at the airport. If you're interested in learning more about operations at airports without control towers in the United States, Boston Virtual ARTCC has provided a briefing for Untowered Airports. Or, if you prefer to hear it from an instructor, you can listen to BVA's recorded seminar on VFR Procedures, which covers both towered and untowered airport operations.

There is one runway at KWYS, numbered 1-19. Landing to the north (on approximately heading 010) would mean you're landing on Runway 1. To the south (heading 190) would be Runway 19. Determine which side you want to approach from. This will primarily be based on the wind, although traffic, terrain, and other factors might change this decision.

You can obtain the wind for KWYS in several ways:

Remember, you generally want to select the runway with the number closest to where the wind is coming from. Of course, if you're going to obtain the weather from a real-world source, you will also want to ensure your simulator is set to real-world weather conditions.

As you descend toward Yellowstone, select the runway you wish to use. Because this is an untowered airport, whether or not you are online, it's your choice which runway to use. If you decide to approach Runway 1, turn a few degrees left to overfly Hebgen Lake. Then, maneuver so you enter the left traffic pattern on a 45 degree downwind. Then, turn base and final as you did in the pattern at KBZN:

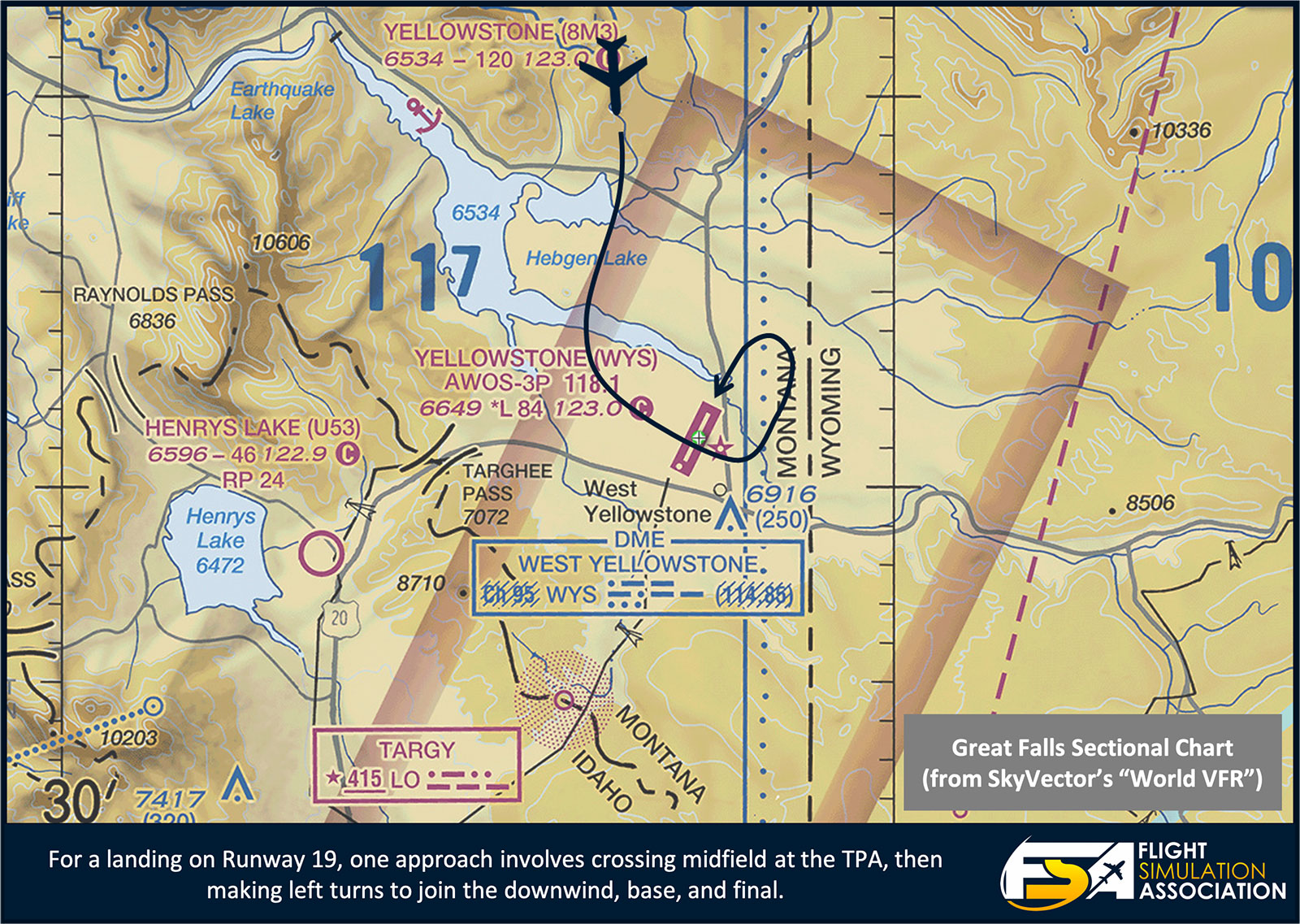

Alternatively, if you decide to use Runway 19, descend to the TPA over Hebgen Lake. Since nothing is explicitly published, the TPA for KWYS is 1,000 ft. AGL for single-engine aircraft and 1,500 ft. AGL for multi-engine aircraft. This means you would fly the pattern at 7,600 ft. MSL in a single-engine aircraft or 8,100 ft. MSL in a multi-engine aircraft. Cross the airport at midfield, wings level, then make a left turn to enter the downwind. From there, make two more left turns to base and final until you are aligned with the runway:

From midfield, the approach should be the same as the VFR closed traffic you flew at KBZN. You are welcome to land and taxi off the runway for a quick break or make it a touch-and-go, stop-and-go, or low approach and keep on going!

Departing from Yellowstone is a little easier than the approach. After takeoff, climb to at least 7,300 ft. (300 ft. below pattern altitude) on runway heading. After that, you can start turning toward Jackson Hole and flying the final leg of this Learning Flight.

Objective 7

Navigate to Jackson Hole

To get from Yellowstone to Jackson Hole, we're going to use another technique for visual flying: dead reckoning. In this technique, you draw a straight line between two points to determine the heading. You fly over the starting point, set your heading, and then use a combination of pre-flight math and visual references to ensure you're tracking it correctly.

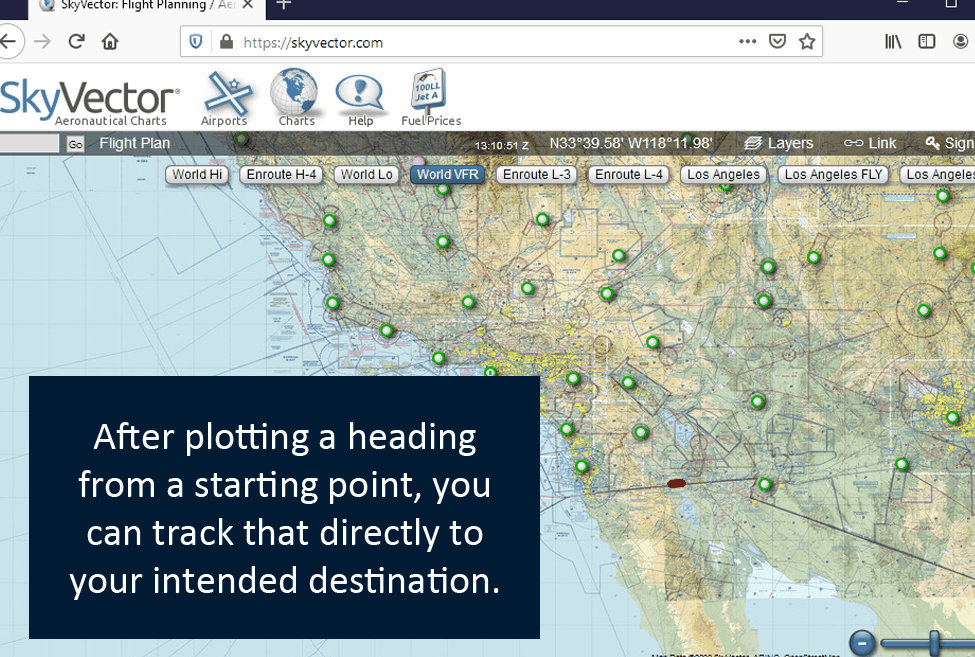

Using SkyVector, plot the direct track between KWYS and KJAC. Now, click and drag the line to the west to create a GPS point over Henrys Lake.

You should now have a line from Henrys Lake to Jackson Hole on an approximately 143 heading.

On departure from KWYS, you'll navigate visually toward Henrys Lake and then, once over the lake, fly heading 143. In no-wind conditions, that heading should bring you directly to KJAC. Along the way, you'll look at landmarks to make sure you're tracking correctly. For example, you should cross I-20 right where the power lines cross the highway. Later on, you'll see the town of Tetonia on your left and Jackson Lake on the right. You'll likely also see Grand Teton (peak of 13,770 ft.) for most of the flight. Since your route of flight almost crosses it, keeping the aircraft pointed toward the peak will help ensure you're on course.

If you're familiar with VOR navigation, you'll notice the JAC VOR-DME is located on the airport. You could track the VOR-DME to aid in navigation, or just use your GPS to plot a course to use for reference. However, this is a VFR flight: don't forget to look outside! You're flying over one of the world's prettiest areas.

As part of the flight planning process, it's a good practice to look at the area you'll be flying over. For example, shortly after departure we'll be overflying Henrys Lake Airport (U53). It's an untowered airport so while we don't have to worry about airspace, there could be other traffic operating in the area. We'll want to cross the airport well above its TPA to ensure we don't conflict. A good practice is to cross at least 2,500' over the airport and to keep an eye out for traffic.

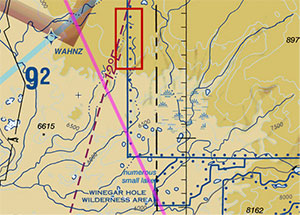

Near the state boundary, you'll notice the flight takes you into Yellowstone National Park and then Grand Teton National Park, the boundaries of which are denoted with:

The FAA requests pilots maintain at least 2,000 ft. AGLwhile crossing National Parks and other similar areas, to help protect wildlife. Accordingly, you'll want to select an altitude that's at least 2,000 ft. above the ground for this flight. Of course, there is an exception allowing you to descend into KJAC, which is located within a National Park.

You'll also pass the TARGO (LO) NDB, and you'll find the Dunoir (DNW) VOR and Jackson (JAC) VOR-DME nearby too. If you're ever wondering what a symbol means, there is a legend on the side of each sectional chart. To see it, switch from the "World VFR" tab to "Salt Lake City" on SkyVector. If you zoom out far enough, you'll find the legend on the left side of the chart, which has definitions for the common symbols.

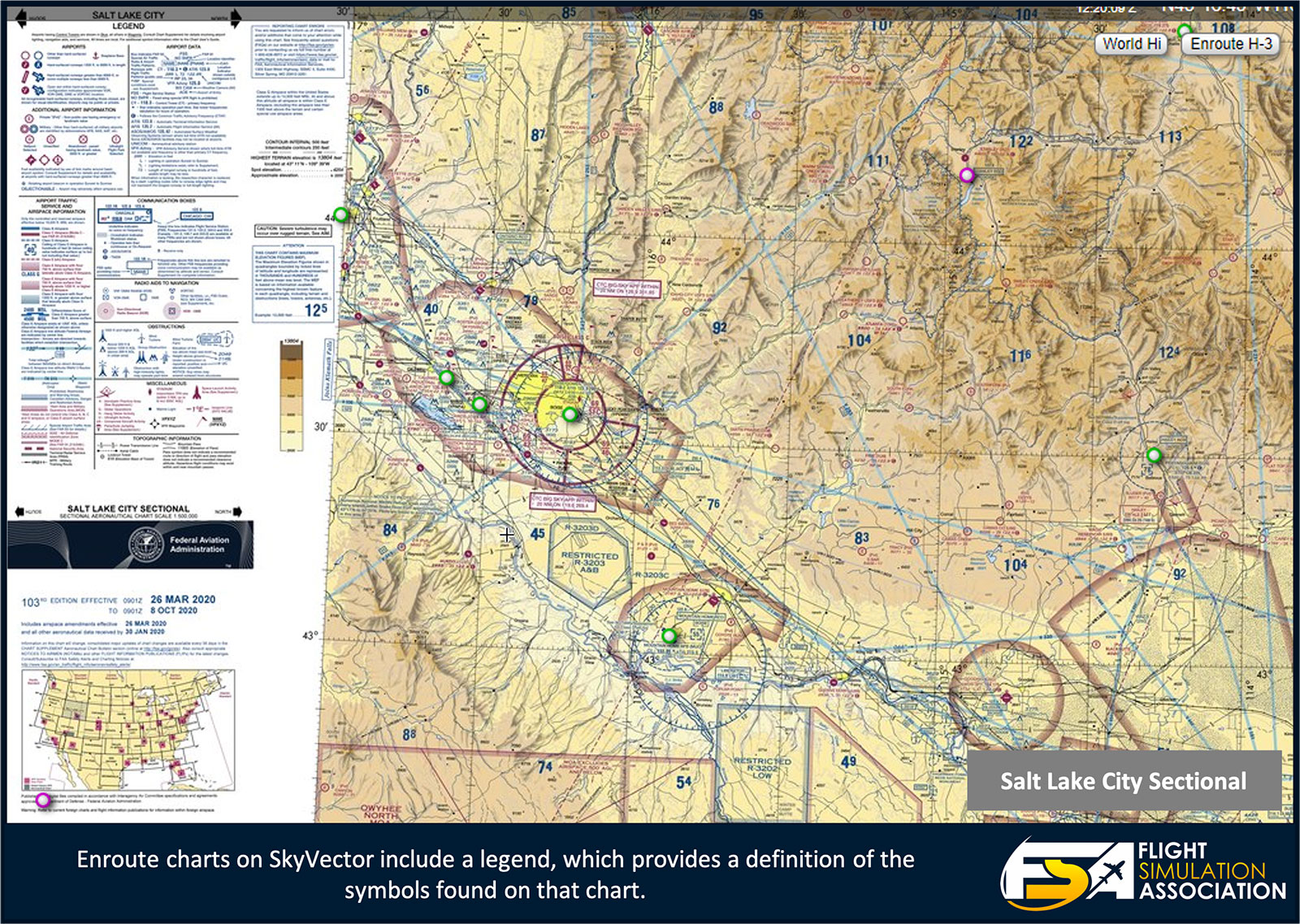

The same authorities who produce charts also provide guides explaining the symbols. Since we're looking at an FAA chart, you'll find information in the FAA's Aeronautical Chart Users' Guide.

Being able to interpret different airspace classifications on a sectional chart is an essential skill for any VFR pilot, especially when flying around busy airspaces. It is also equally important to understand the requirements for entering these airspace types and knowing when you are required to talk to air traffic control. Hover over each of the airspace types below to learn more about airspace classes in the United States:

If you're flying IFR with ATC, then ATC is generally responsible for ensuring you don't enter airspace without authorization. However, as a VFR pilot, you are responsible for your own navigation and ensuring you don't enter airspace you shouldn't.

When airborne from KWYS, climb to within 300 ft. of the TPA, then turn southwestbound (approximately heading 245) until you see Henrys Lake. The lake will become more visible as you climb. From over the middle of the lake, turn left to a heading of 143. Using a combination of that heading, visual references, Grand Teton, the JAC VOR-DME, and your GPS, navigate to KJAC. You should overfly the point where the powerlines cross I-20 and will be able to see several of the peaks within Yellowstone National Park to your left. You should pass over several small lakes near the Winegar Hole Wilderness Area and might notice the town (and airport) of Driggs on your right as you get set to approach Jackson Hole.

Objective 8

Land at Jackson Hole and Find the FBO

As you approach KJAC, you should be familiar with the notes, runway layout, and other information about the airport. Some of the notes that should catch your eye include:

ACFT THAT FAIL TO TOUCH DOWN WITHIN THE FIRST THIRD OF RY 01/19 SOMETIMES FAIL TO STOP ON THE RY AND ARE AT RISK FOR A RY EXCURSION.

In fact, this is a very challenging airport; located at more than 6,000 ft. MSL, a 6,300 ft. runway can disappear very quickly behind you. That's what happened to an American Airlines Boeing 757 attempting to land in Jackson Hole on December 29, 2010, which ran off the end of Runway 19 and came to a stop in deep snow. Fortunately, the occupants were not injured and the aircraft sustained only minor damage. The cause: inadequate pilot training and some unlucky timing in the way the aircraft's systems interact. You're probably flying something a little smaller than a Boeing 757 but either way—this airport is not for the feint of heart! (Don't worry, we have some even more intense approaches coming later in this series.)

Another interesting point you'll find is:

NOISE ABATEMENT PROCEDURES IN EFFECT FOR ACFT DEPARTURES ON RWY 19.

You'll often find that small airports—especially those located near cities or wildlife—will publish noise abatement procedures. Sometimes they are voluntary and other times they are mandatory. You'll find some noise abatement procedures in the front pages of the Chart Supplement if they are published by the FAA. Otherwise, you can often find them on the airport's website. Scroll down to the section on "Noise Abatement and Monitoring" and you'll find a link to the airport's Noise Abatement Procedures. Complying with these procedures is a great practice for those looking to add some realism (and getting into the habit of looking for them is a polite thing to do if you're a real-world pilot who wants to be a good neighbor!).

As you are considering how to approach the airport and deciding which runway to land on, you should also be thinking about where you'll park. The last thing you want is to land, exit the runway, and then realize you have no idea where to go! Fortunately, this is a very simple airport and the FBO is denoted on the Airport Diagram (between Taxiways "C" and "D").

The Jackson Hole Noise Abatement Procedures provide fairly detailed guidance for landing on either runway. Once again, if you are flying offline, the choice of runway and approach is yours. You may elect to use Runway 1, since it's the preferred arrival runway:

However, if the wind, traffic, or other factors favor Runway 19, there are also instructions for arriving on that runway:

Conduct a normal approach and landing, complying with the noise abatement for the bonus realism.

Once you've landed, slow to a safe taxi speed and exit the runway. Remember, it's never a good idea to stop on the runway; you never know who is behind you. Your landing clearance includes authorization to exit the runway on the first-available taxiway after you reach a safe speed. Find your way to the FBO, set the parking brake, and congratulate yourself on completing this first Learning Flight!

Hopefully you've enjoyed the scenic views of Flight 1 and have learned a thing or two about VFR flying in the United States. The remainder of the program discusses IFR flying.
